5G cpe WIFI 6 Router with SIM Card Slot external Antenna
Информация за продукта
5G cpe WIFI 6 Router with SIM Card Slot external Antenna Обобщение
| 5G Cellular |
| 1) 5G Baseband: Qualcomm® Snapdragon™ X55 Modem-RF System |
| 2) 5G Network Modes: SA (standalone), NSA (non-standalone) |
| 3) 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 |
| 4) 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 |
| 5) 5G Standards:3GPP Release 15 |
| 6) 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs) |
| 7) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs) |
| 4G Cellular |
| 8) LTE Category:Down Cat 16/ UP Cat 18 |
| 9) LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
| 10) LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 |
| 11) LTE Down 4 × 4 MIMO:B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66 |
| 12) WCDMA:B1/B2/B3/B4/B5/B8/B19 |
| 13) LTE : Down 1.0 Gbps;UP 200 Mbps |
| WiFi6 Datasheet |
| WiFi 6(802.11ax) |
| 1) Working Radio: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz |
| 2) Coding Technology:1024-QAM / OFDMA |
| 3) Peak Connections:>100+ Clients |
| 4) Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward |
| 5) Antenna: external 4 pcs high performance antennas with 4 pcs FEM components. |
| Data Switching |
| 1) Mobile 4G/5G Connection (Support APN) |
| 2) Giga Ethernet Connection |
| 3) MESH:MESH+ hybird |
| 4) 2.4G/5Ghz WiFi |
| 5) Advanced Firewall |
| 6) MAC Filter |
| 7) WiFi Sercurity |
| 8) VPN Passthrough and VPN Client (L2TP PPTP)9) IPV4/IPV6 |

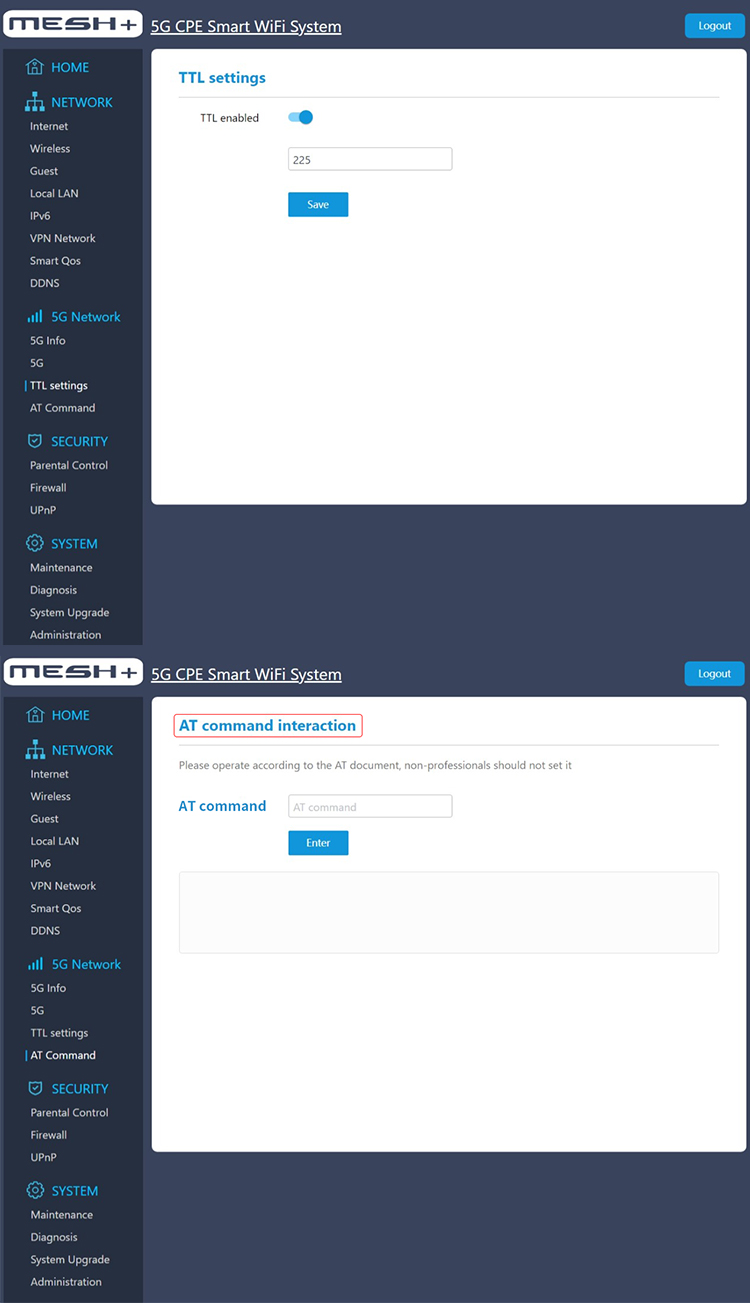

| 10) WEB / APP Mangement |
| 11) Firmware upgrade |
| Hardware Specification |
| 1) CPU: MT7621AT |
| 2) Memory:16MB Flash + 256MB DDR3 |
| 3) Ethernet:1*1Gbps WAN,2*LAN 1Gbps |
| 4) 1* SIM Slot(Nano-SIM) |
| 5) Reset button |
| 6) MESH+ Button |
| 7) MESH+ LED Switch |
| 8) LED Indicator |
| – MESH+ Working Status (breathing light) |
| – 4G Status |
| – 5G Status |
| – WiFi Status |
| – Power Status |
| （9) General |
| – Power Consumption:<20W |
| – DC Power Supply: 12V/2A |
| – Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃ |
| – Humidity:5%~95% |
| – Weight: 0.69kg（N.W.） |
